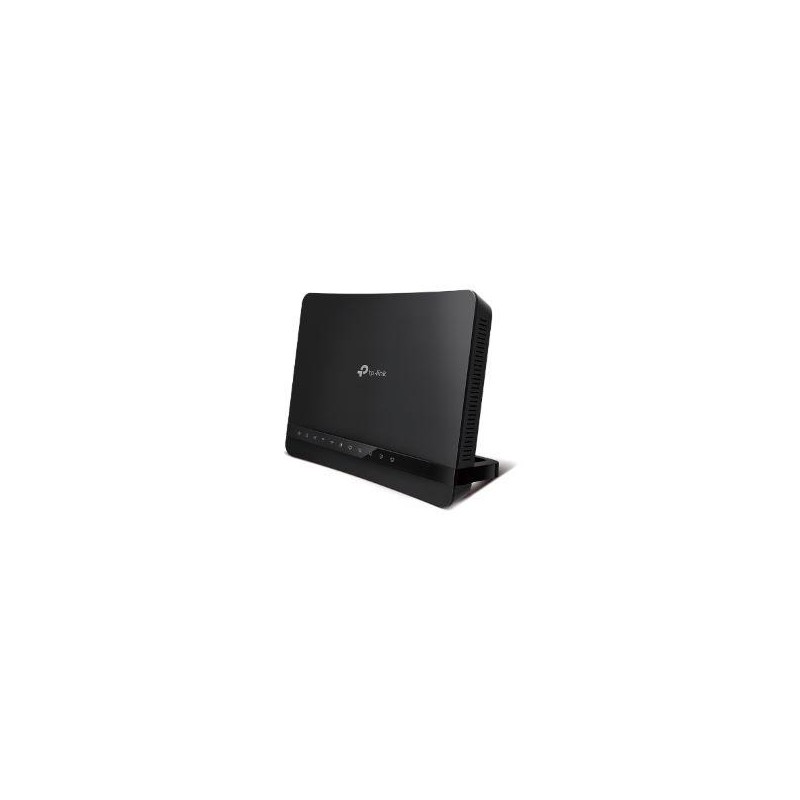

Modem Router FR (VDSL|FTTC|FTTS|ADSL) dual band - VR1200
search
  • Modem Router FR (VDSL|FTTC|FTTS|ADSL) dual band - VR1200

Modem Router FR (VDSL|FTTC|FTTS|ADSL) dual band - VR1200

80,25 €
Tasse incluse
Sizes: 0
Box: 10
Color: Black
Certificate: CE RoHS FCC
Comp. brand: TP-Link
Quantità

Scarica aggiornamenti

Archer VR1200

Modem Router FR (VDSL | FTTC | FTTS | ADSL) fino a 100Mbps, Wi-Fi AC1200

  • Wi-Fi Dual-Band AC1200 – Due bande Wi-Fi combinate per velocità fino a 300Mbps (2.4GHz) e 867Mbps (5GHz)
  • Porta LAN Gigabit – Connessioni cablate ultra veloci, fino a 10 volte superiori allo standard Fast Ethernet
  • Connettività FR (VDSL) fino a 100Mbps – Massima compatibilità con gli standard VDSL2/ADSL2+/ADSL2/ADSL
  • Connettività F (Fibra FTTH) fino a 1Gbps – Compatibile con fibra FTTH con media converter ONT fornito dal provider
  • Agile Solution* – Soluzioni per Service Provider Agile Config e ACS





CARATTERISTICHE HARDWARE
Interfaccia 4 10/100/1000Mbps RJ 45 LAN Ports
1 10/100/1000Mbps RJ 45 WAN Port
1 RJ11 Ports (1 DSL Port)
Tasto WPS Button, Wi-Fi Button, Reset Button, Power On/Off Button
Alimentazione 12V/1.0A
Standard wireless IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz
Standard IEEE IEEE 802.3, IEEE 802.3u, 802.3ab
Standard VDSL2 ITU-T G.993.2, Up to 30a profile (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
Standard ADSL Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite)
Standard ADSL2 ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)
Standard ADSL2+ ITU-T G.992.5 Annex A/M
Dimensioni ( L x P x A ) 214* 144.5*80 mm
Tipo di antenna Internal antennas
Guadagno antenna 2dBi for 2.4G/3dBi for 5G
CARATTERISTICHE WIRELESS
Frequenza 2.4GHz and 5GHz (Not Supports DFS by default)
Signal rate 867Mbps at 5GHz, 300Mbps at 2.4GHz
Potenza di trasmissione 2.4GHz <20dBm
5GHz <23dBm(band1)
Funzionalità wireless Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Sicurezza wireless 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
CARATTERISTICHE SOFTWARE
Internet Protocols Supports IPv4 and IPv6
QoS (Quality of Service) Bandwidth Control
Sicurezza NAT Firewall, Access Control
IP and MAC Address Binding
Modalità operative VDSL2 Modem Router
Wireless Router
Gestione Web based configuration(HTTP)
SNMP v1/v2c
CWMP(TR-069)
DHCP Server, Client, DHCP Client List, Address Reservation,
DHCP Relay
Port forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS DynDns, NO-IP
VPN pass-through PPTP, IPSec Passthrough
Protocolli ATM/PPP ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Funzionalità avanzate Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3
VPN IPsec Supports up to 16 IPSec VPN tunnels
ALTRO
Certificazione CE
Contenuto della confezione DSL Modem Router Archer VR1200
External Splitter
RJ11 DSL Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Requisiti di sistema Nessuno
Ambiente Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TL-ARCHER-VR12
