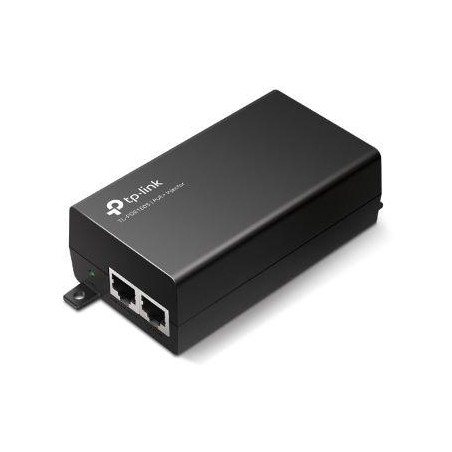

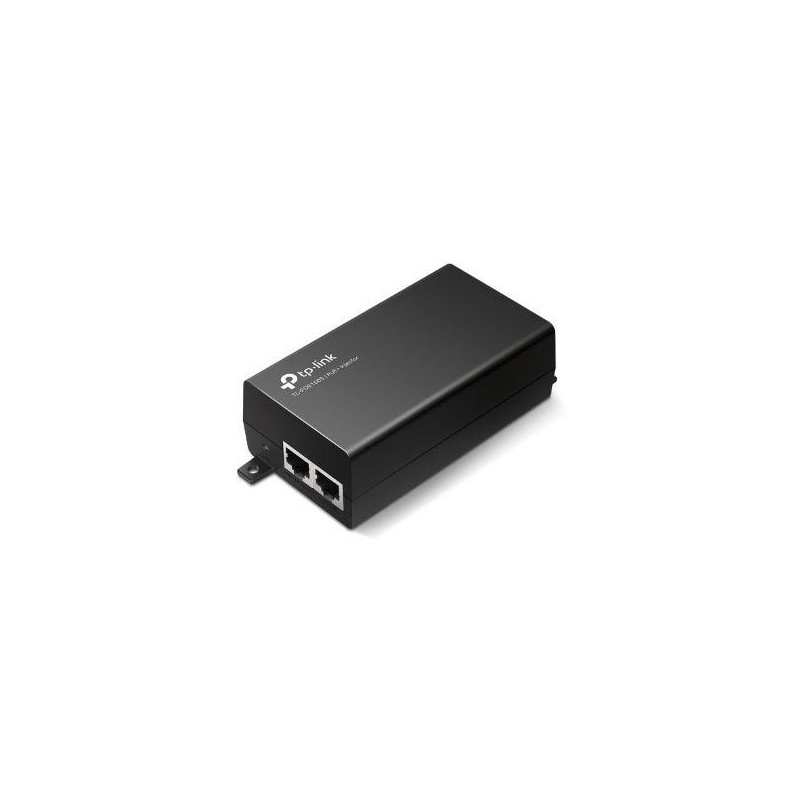

Injector PoE+ IEEE802.3af/at
search
  • Injector PoE+ IEEE802.3af/at

Injector PoE+ IEEE802.3af/at

24,83 €
Tasse incluse
Sizes: 23x17x8
Box: 20
Color: Black
Certificate: CE RoHS FCC
Comp. brand: TP-Link
Quantità
Non disponibile

TL-POE160S
Injector PoE+ IEEE802.3af/at

  • 2 Porte Gigabit RJ45
  • PoE+ IEEE802.3af/at
  • Auto determina i parametri elettrici necessari
  • Plug & Play, nessuna configurazione richiesta







Standard e Protocolli IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
GENERALE
Certificazione FCC, CE, RoHS
Ambiente Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
CARATTERISTICHE HARDWARE
Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports 1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Consumo energetico Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)
Utilizzo principale Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
Indicatore LED ON: Supplying power normally
OFF: No power supply
Dimensioni ( L x P x A ) 4.9*2.3*1.4 in (125*59.4*36.8 mm)
TL-POE160S
