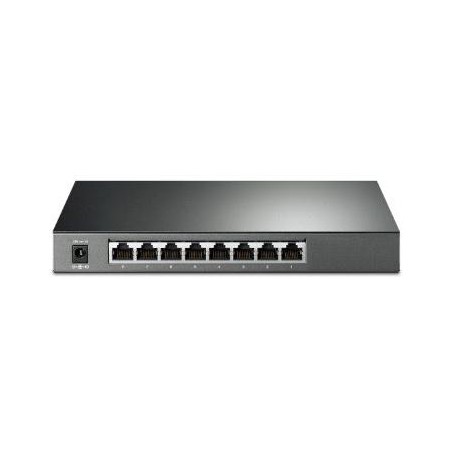

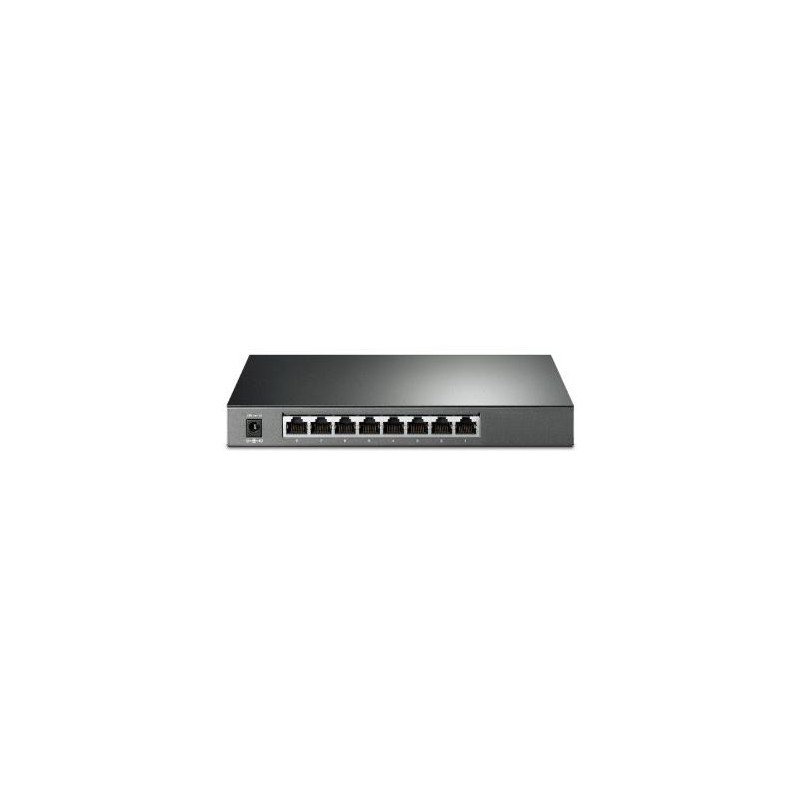

Switch Smart Desktop con 8 Porte Gigabit Jetstream by Omada
search
  • Switch Smart Desktop con 8 Porte Gigabit Jetstream by Omada

Switch Smart Desktop con 8 Porte Gigabit Jetstream Omada SDN

102,28 €
Tasse incluse
Sizes: 28x22.3x6.8
Box: 1
Color: Black
Certificate: CE RoHS FCC
Comp. brand: TP-Link
Quantità

Switch Smart Desktop con 8 Porte Gigabit | Jetstream by Omada

  • Switch Gigabit Ethernet - 8 porte RJ45 velocità 10/100/1000Mbps.
  • Dispositivo integrato Omada SDN* - La nuova soluzione Omada Software Defined Networking consente di gestire le reti Omada con modalità Hybrid Cloud e Full-Cloud. Integra Access Point della serie EAP, Router VPN SafeStream e Switch JetStream by Omada.
  • Gestione centralizzata - Accesso in Cloud con Omada app o piattaforma di gestione web.
  • Massima sicurezza - Include 802.1Q VLAN, ACL, Port Security e Storm control e molto altro.
  • Ottimizzazione video/voce - L2/L3/L4 QoS e IGMP.
  • Gestione versatile - WEB/CLI managed modes, SNMP, RMON.



CARATTERISTICHE HARDWARE
Standard e protocolli IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interfaccia 8 10/100/1000Mbps RJ45 Ports
(Auto-Negotiation/Auto MDI/MDIX)
Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
Numero ventole Fanless
Alimentazione • 12 VDC/1 A External Adapter or
• Obtain Power from PoE Source
Consumo energetico 6.4 W (220 V/50 Hz)
Dimensioni ( L x P x A ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
PRESTAZIONI
Bandwidth/Backplane 16 Gbps
Packet Forwarding Rate 11.9 Mpps
Tabella ARP 8K
Jumbo frame 9 KB
CARATTERISTICHE SOFTWARE
QoS (Quality of Service) • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
Funzionalità L2 e L2+ • 16 IP Interfaces
- Support IPv4/IPv6 Interface
• Static Routing
- 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
VLAN • VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN
ACL (Access Control List) • Support up to 230 entries
• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
• Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Sicurezza • AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control
Gestione • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
ALTRO
Certificazione CE, FCC, RoHS
Contenuto della confezione TL-SG2008
Power Adapter
Installation Guide
Rubber Feet
Requisiti di sistema Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TL-SG2008
