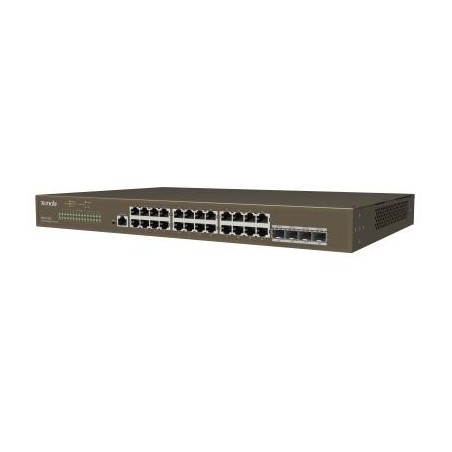

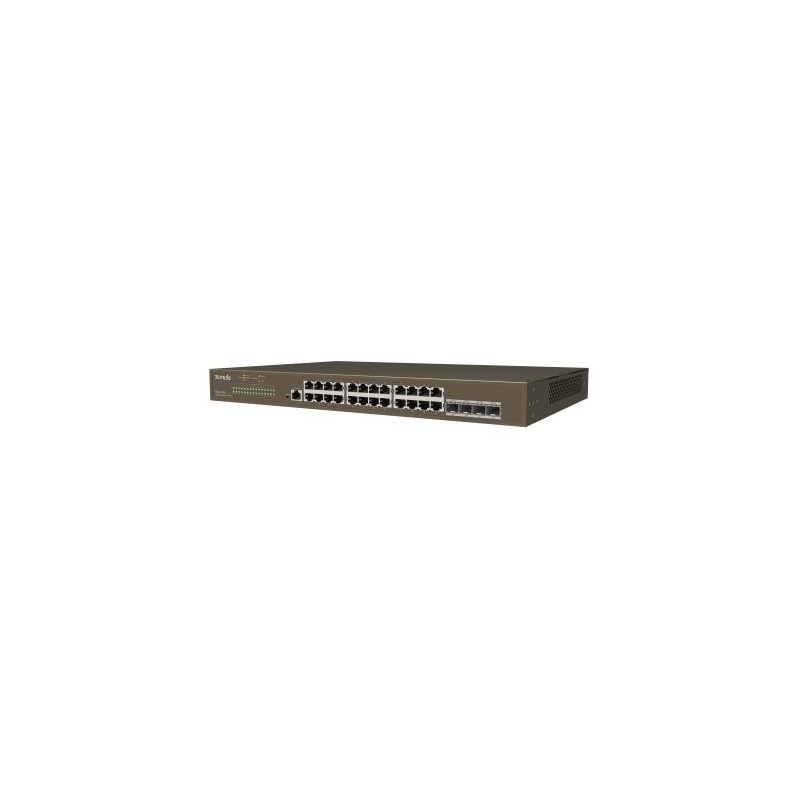

Tenda Switch TEG3328F 24 Porte 10/100/1000mps
Box: 5
Color: Brown
Certificate: CE RoHS FCC
Comp. brand: Tenda
TEG3328F è uno switch managed ideale per reti di dimensioni medio-grandi come le imprese e gli hotel.
Modello
TEG3328F
Standard di rete
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
LED
One Link/Act LED indicator for each port
One Power LED indicator for each device
One SYS LED indicator for each device
Interfaccia
24*10/100/1000 Base-T Ethernet ports
4*1000 Base-X SFP ports
1*Console port
Numero di ventole
N/A
Risorse sistema di trasmissione
Recommended: CAT5/5e UTP or better
PoE budget
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Modalità di invio
Store-and-forward
Capacità di commutazione
56Gbps
Efficienza del sistema di invio dati
41.70Mpps
Velocità di inoltro dei pacchetti
12Mb
Tabella degli indirizzi MAC
16K
Jumbo frame
10K
PoE power supply
N/A
Voltaggio in entrata
100-240V AC 50/60Hz
Consumo energetico
Full load: <24W
Empty load: <10W
Dimensioni
440 mm x 179.6 mm x 44 mm(L*W*H)
VSWR
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Efficienza energetica
Support
Ambiente
Operating temperature: 0°C - 45°C
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing
Certificazioni
CCC, FCC, CE, RoHS
L3 Features
N/A
Buffer
N/A
Caratteristiche di sicurezza
Supports ARP receiving limit
Supports discarding unknown MAC addresses
Supports DoS attack defense
Supports 802.1x security authentication
Supports RADIUS authentication
VLAN
Supports 4K VLAN table
Supports IEEE 802.1Q VLAN
Supports three port link types: Access, Trunk and Hybrid
DHCP
DHCP Snooping
Supports Option 82 policy configuration
Congiunzione di porte
Static aggregation
LACP dynamic aggregation
Spanning tree
IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge ports
Supports BPDU statistics
Supports BPDU Guard, BPDU Filter
Supports Root Guard, Loop Guard
Supports Loopback-detection
Multicast
IGMP Snooping V1/V2/V3
Supports fast leave configuration on ports
Riflettività di porta
Supports N: 1 port mirroring
QoS
SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping
Caricamento e aggiornamento
Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export
Gestione e manutenzione
Supports Telnet configuration and Console port configuration
Supports SNMP V1/V2/V3
Supports web management and maintenance
Supports Ping/Tracert/cable test
