Switch Unmanaged 24 porte 10/100/1000Mbps + 2 SFP Gigabit
search
  • Switch Unmanaged 24 porte 10/100/1000Mbps + 2 SFP Gigabit

Switch Unmanaged 24 porte 10/100/1000Mbps + 2 SFP Gigabit

96,85 €
Tasse incluse
Sizes: 44x17.8x4.4
Box: 5
Color: Light brown
Certificate: CE RoHS FCC
Comp. brand: IP-COM
Quantità
Non disponibile

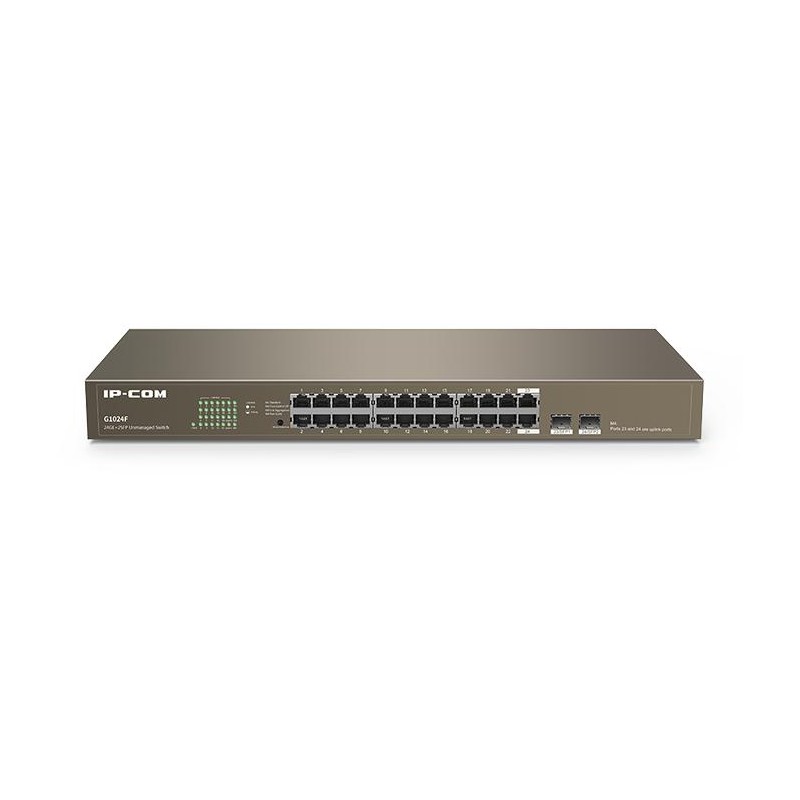

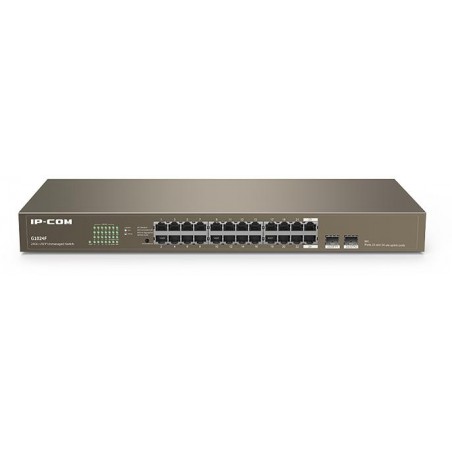

IP-Com G1024F

24-Port Gigabit Unmanaged Switch with 2 SFP Slots
  • Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
  • Supports MAC address self-learning and auto MDI/MDIX
  • Provide 24 10/100/1000Mbps auto-negotiation ports,2 Gigabit combo SFP slots
  • Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
  • Inductive Lightning Protection up to 6KV for power supply and all ports
  • 4 Network Modes( Standard, Flow Control, Link aggregation, Port VLAN)
  • Plug and play, no need configuration



Hardware Features
Standard IEEE802.3/u/x/ab
Interface 24*10/100/1000Mbps RJ45 Ports
2 Gigabit combo SFP slots
Forwarding Rate 10Mbps : 14880pps
100Mbps : 148800pps
1000Mbps : 1488000pps
Switching Capacity 48Gbps
Address Table 8K
Lighting Proof lightning protection 6KV for power supply,6KV for all ports
Power Consumption <20W
Power Input 100-240V~50/60Hz
Dimensions 440*178*44mm
Operating Environment Temperature:0℃~45℃
Humidity:10%~90% non-condensing
Storage Environment Temperature:-40℃~70℃
Humidity: 5%~90% non-condensing
Software Features
Port Feature IEEE802.3x flow control (full duplex)
Network Modes M1: Standard
the switch functions as a standard gigabite basic switch, and could be used as a core switch, which is suitable for gigabite netwok extension in small offices.
M2: Flow control
Dedicated for cyber bars and education institutes, the 10/100/1000Mbps auto-negatiation mode can effectively slove slowness issue when cloning network.
M3: Link aggregation
Dedicated for networking in SMEs. Port 15 and Port 16 are grouped as a single one (source MAC + destination MAC, static trunking) to increase uplink bandwidth so as to break the uplink bottleneck and prevent data congestion.
M4: Prot VLAN
Dedicated for video surrivelance, wired/wireless networking. Mutually isolated with each other, 1-22 ports could only communicate with the 23th and the 24th ports seperately, thus preventing broadcast storm, ARP virus, and DHCP sproofing, as well as improving the intranet's transmission rate and security.
IC-G1024F
