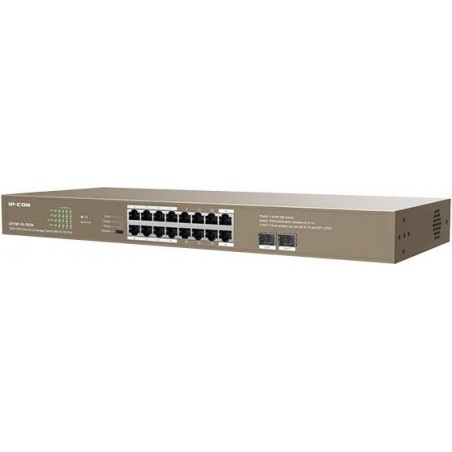

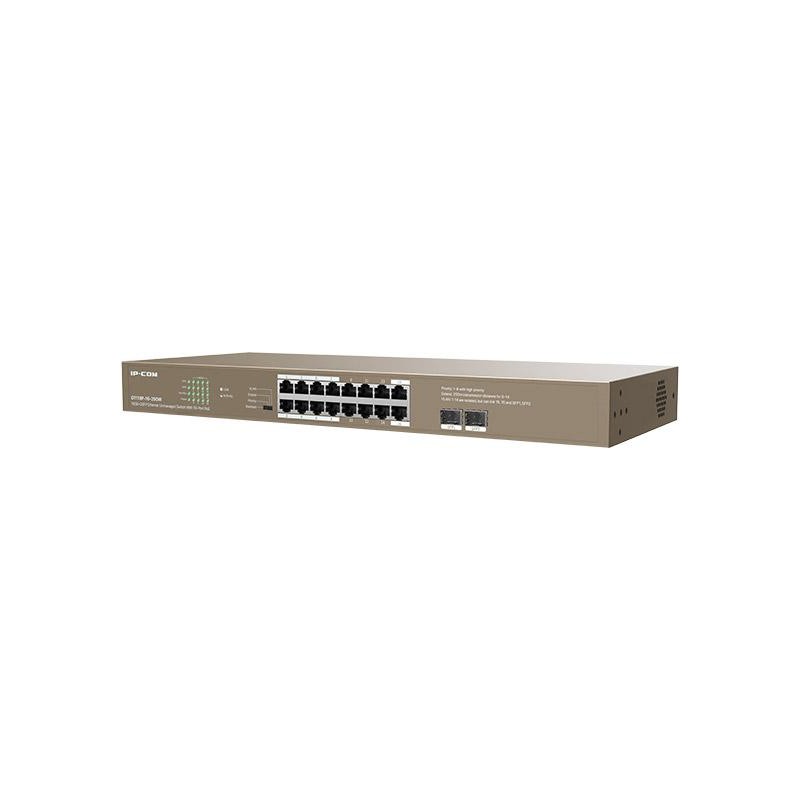

Switch Unmanaged 16GE+2 SFP a 16 porte 10/100/1000Mbps
search
  • Switch Unmanaged 16GE+2 SFP a 16 porte 10/100/1000Mbps

Switch Unmanaged 16GE+2 SFP a 16 porte 10/100/1000Mbps

197,26 €
Tasse incluse
Sizes: 44x17.8x4.4
Box: 5
Color: Light brown
Certificate: CE RoHS FCC
Comp. brand: IP-COM
Quantità

G1118P-16-250W

16GE+2SFP Ethernet Unmanaged Switch With 16-Port PoE
  • Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards.
  • 16 * 100/1000 Mbps Base-T RJ45 ports for data transmission and power supply,
  • 2 * 1000 Mbps Base-X SFP slots.
  • 8K MAC address table and MAC address auto-learning.
  • IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.
  • 36Gbps backplane bandwidth.
  • Maximum power consumption of a single port: 30W; Maximum power consumption of the switch: 250W.
  • 4 modes: standard, priority, extend and VLAN.
  • Rack mounting.



Model G1118P-16-250W
Interfaces 16 * 100/1000 Mbps Base-T RJ45 ports (Data/Power)
2* 1000 Mbps Base-X SFP port
Lightning protection ≥6KV
Forwarding mode Store-and-forward
Switching capability 36 Gbps
Packet forwarding rate 26.8 Mpps
Buffer 2M
MAC address table 8K
PoE supply Ports 1-16 support standard IEEE802.3af/at 30W output per PoE port
230W output of the total PoE Power
Power consumption 250W output the whole device
Input voltage AC: 100-240V~50/60Hz
Dimensions 440*178.8*44mm
Four Modes Standard: Default mode of the switch. In this mode, it works as an unmanaged switch;all ports can communicate with each other separately.
Priority: In this mode, port 15,16,SFP1 and SFP2 serve as uplink ports, ports 1 ‒ 8 serve as high priority port. All ports can communicate with each other separately.
Extend: In this mode, data rate of ports 9 - 14 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other.
VLAN: In this mode, ports 1 - 14 of the switch can communicate with port15,16, SFP1, SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast.
Operating environment Operating Temperature: 0℃~45℃ (32℉~113℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certificates FCC、CE、RoHS
IC-G1118P-250
