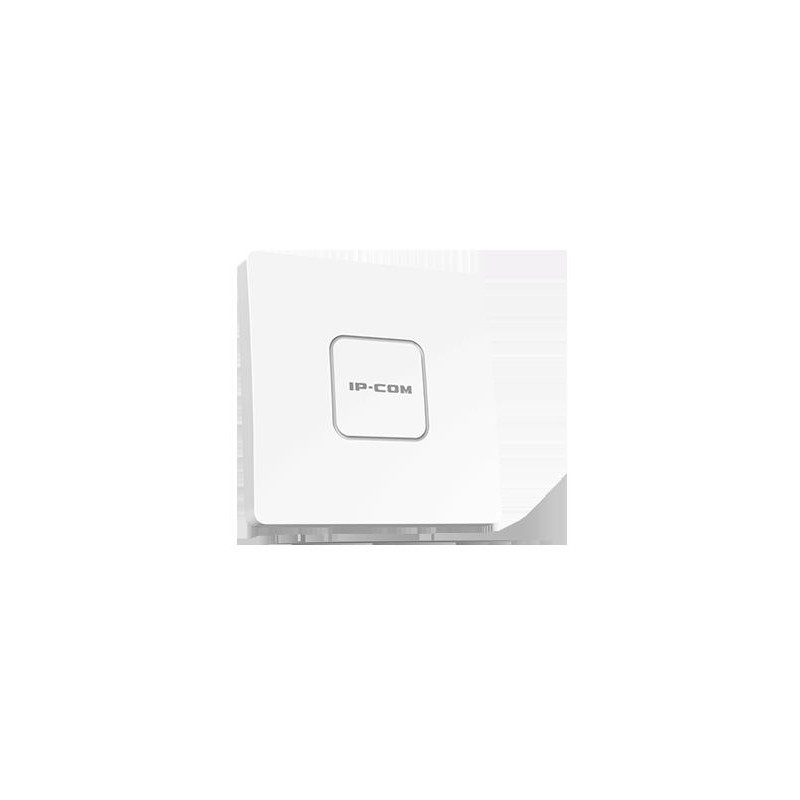

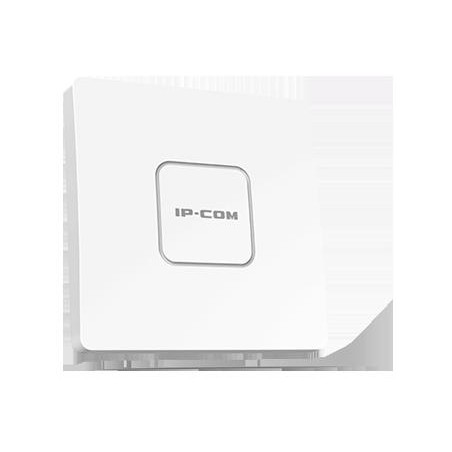

Access Point AC1350 Wave2 Gigabit
Box: 20
Color: White
Certificate: CE RoHS FCC
Comp. brand: IP-COM
W64AP
AC1350 Wave2 Gigabit Access Point - CLICCA QUI per vedere uno scenario di utilizzo- High power for broader and stable coverage
- Gigabit internet connection for ultra-fast experience
- Up to 1317 Mbps dual-band data rate
- Centralized management by all IP-COM ACs and enterprise routers
Compliant with IEEE 802.11ac, W64AP is a gigabit dual-band ceiling access point. Powered by MU-MIMO technology, a single W64AP can simultaneously communicate with multiple clients, greatly improving throughput and enhancing user experience. With high power RF and renovative design of antennas that are optimized for long distance scenarios, W64AP offers reliable long-distance wireless solutions for indoor space with signal barriers, such as factory warehouses and hotels.
High power
High power RF and built-in high-gain omni-directional antennas guarantee a broader and stable coverage.
IEEE 802.11ac Wave2
Powered by MU-MIMO technology, a single W64AP can communicate with multiple wireless clients at one time, letting you enjoy higher throughput and better experience.
Dual-band for more connected clients
W64AP allows clients that support either 2.4 GHz or 5 GHz band, or both to connect to it at the same time, tripling the quantity of connected clients of traditional single-band AP.
Gigabit internet connection for ultra-fast experience
Up to 1317 Mbps dual-band data rate and the Gigabit Ethernet port offer you ultra-fast internet connections.
Built-in RF for intelligent optimization
Featuring various anti-interference algorithms, the built-in RF enables W64AP to evenly allocate bandwidth resources for multiple users, filter interference, and optimize date rate, offering you a guaranteed signal strength and reliable wireless experience.
VLAN tagging for SSID
W64AP allows you to set multiple SSIDs and add VLAN tags for SSIDs, thus protecting your network.
Standard PoE sourcing and DC power supply for easy deployment
You can use an IEEE 802.3at-compliant PoE sourcing equipment, or a 12V DC power adapter to power on W64AP.
Centralized management
You are allowed to configure and manage multiple W64AP in a centralized manner through all IP-COM access controllers (AC) and enterprise routers that include AC functionality, and enjoy simple management, configuration and monitoring of all access points.
Product Information | |
---|---|
Model | W64AP |
Appearance | Ceiling |
Dimensions | 178 mm * 178 mm * 38 mm |
Hardware Specifications | |
Frequency band | 2.400 – 2.4835 GHz, 5.150 – 5.250 GHz |
Wireless standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
2.4 GHz data rate | 1 - 450 Mbps |
5 GHz data rate | 6 - 867 Mbps |
Ethernet port | 1*10/100/1000 Base-TX RJ45 port |
Button | 1*Reset |
LED indicator | 1*Power |
Max. power consumption | Full-load 13.5W |
Power supply standard | IEEE 802.3at PoE, DC 12V 1.5A |
Software Specifications | |
Operating modes | AP, Client+AP |
Hide SSID | Supported |
Max. No. of SSID | "2.4 GHz: 8 5 GHz: 4" |
Max. connected clients | "2.4 GHz: 128 5 GHz: 256" |
WEP | Supported |
WPA-PSK | AES/TKIP |
WPA2-PSK | AES/TKIP |
WPA | Supported |
WPA2 | Supported |
Access control | MAC address-based |
Adjustable power transmit | Supported |
Frequency analysis | Supported |
AP isolation | Supported |
Connected clients control | Supported |
RSSI threshold | Supported |
WMM | Supported |
VLAN tagging for SSID | Supported |
Antenna gain | 4 dBi |
2.4 GHz Max. output power | 23 +/- 1.5 dBm |
5 GHz Max. output power | 26 +/-1.5 dBm |
802.11b RX sensitivity | -94 dBm |
2.4 GHz 802.11n (MCS7) RX sensitivity | -75 dBm |
5 GHz 802.11a RX sensitivity | -98 dBm |
5 GHz 802.11n (MCS7) RX sensitivity | -79 dBm |
Prefer 5 GHz | Supported |
LED indicator control | Supported |
Diagnostics tool | Ping, Traceroute |
Scheduled reboot | Supported |
Reboot at specified interval | Supported |
Management | Web UI |
System logs | Supported |
Firmware upgrade | Local and AC upgrade |
Reboot | Local and AC reboot |
Reset | Local and AC reset |
Backup configuration | Supported |
Restore configuration | Supported |
Operating Environment | |
Default login IP address | 192.168.0.254 |
Default user name | admin |
Default password | admin |
Operating temperature | -10 ℃ - 45 ℃ |
Operating humidity | (10% - 90%) RH, non-condensing |
Storage temperature | -30 ℃ - 70 ℃ |
Storage humidity | (10% - 90%) RH, non-condensing |
Certificates | |
Certificates | CE\FCC\RoHS |
