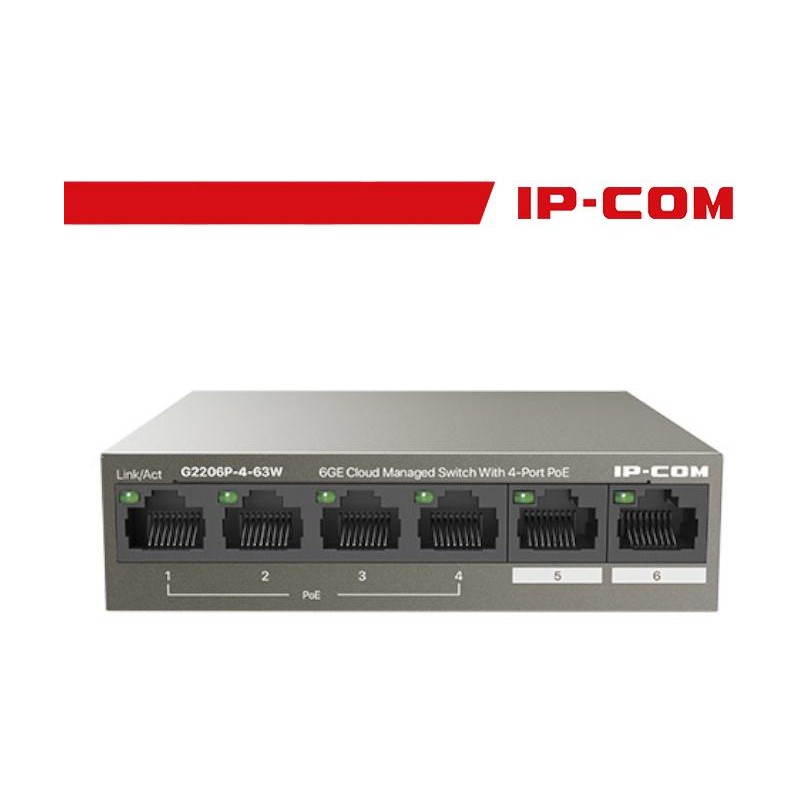

Switch IP-COM Cloud 6GE G2206P 4 porte PoE Gigabit

64,65 €
Tasse incluse
Sizes: 0
Box: 30
Color: Light brown
Certificate: CE RoHS FCC
Comp. brand: IP-COM
Quantità

Caratteristiche principali:
  • Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af/at, IEEE 802.1q standards
  • 4 × 10/100/1000 Base-T Ethernet ports (PoE & Data), 2 × 10/100/1000 Base-T uplink ports (Data)
  • 2 K MAC address table and MAC address auto learning
  • IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
  • 12 Gbps switching fabric for non-blocking line-speed forwarding
  • Maximum PoE output of a single port: 30 W, Total PoE output of the switch: 58 W
  • ProFi Cloud web UI and App management
  • 250 m network extension, PoE management, QVLAN, VLAN transparent transmission, traffic statistics, loop guard, DHCP Snooping and MAC address binding



Specifiche tecniche:
Interfaccia 4 × 10/100/1000 Base-T Ethernet ports (PoE & Data)
2 × 100/1000 Base-T Ethernet port (Data)
Indicatori LED One Link/Act LED indicator for each port
One PWR LED indicator for each device
One SYS LED indicator for each device
Standard network IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1q, IEEE802.3af, IEEE802.3at
Velocità Switching 12 Gbps
Velocità inoltro pacchetti 8.9 Mpps
Protezione fulmini Port: 6 kV
Power supply: 6 kV
Dimensioni (WxDxH) 100 mm × 100 mm × 26 mm
PoE power supply

IEEE 802.3af/at standards PoE power supply on ports 1-4
Voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is -
