- Non disponibile

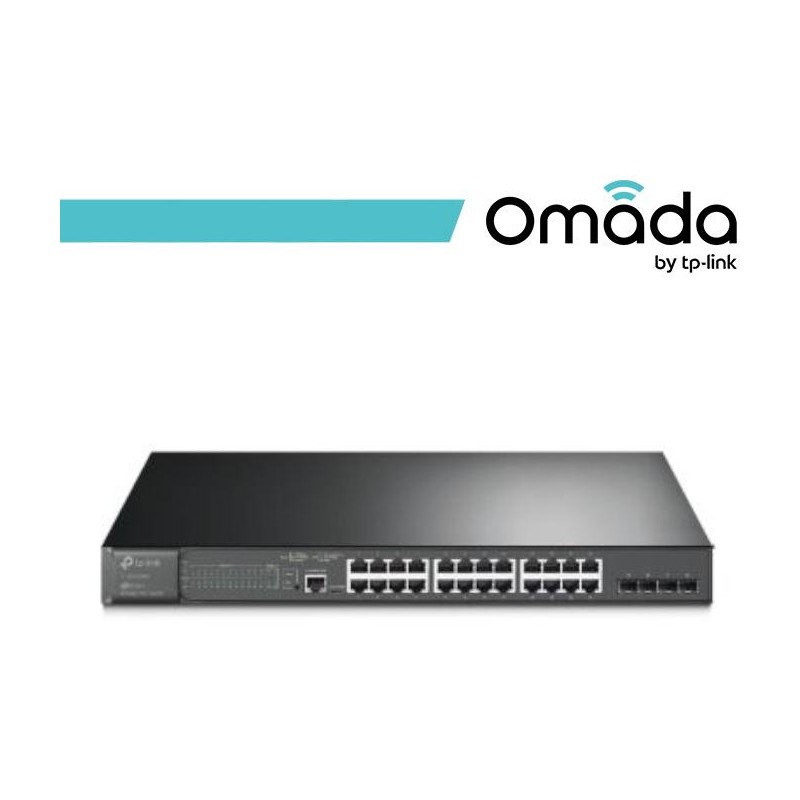

Omada Switch 24 Porte Gigabit PoE+ e 4 Slot SFP
499,52 €
Tasse incluse
Sizes: 52.8x44x10
Box: 2
Color: Black
Certificate: CE RoHS FCC
Comp. brand: Omada
Box: 2
Color: Black
Certificate: CE RoHS FCC
Comp. brand: Omada
Switch Managed L2 con 24 Porte Gigabit PoE+ e 4 Slot SFP | JetStream by Omada
- Switch Gigabit - 24 porte Gigabit LAN PoE+ e 4 slot Gigabit SFP Slotsper connessioni ad alta velocità.
- Power Budget PoE 384W - Le 24 porte PoE+ supportano gli standard 802.3at/af con power budget totale di 384W, fino a 30W per singola porta.*
- L2 Static Routing - Il routing statico consente di ottimizzare le risorse di rete impostando percorsi di connessione interni predefiniti dall'amministratore.
- Sicurezza avanzata - IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication e molto altro.
- Ottimizzazione video/voce: Con funzionalità L2/L3/L4 QoS e IGMP snooping.
- Gestione intuitiva - Modalità gestite WEB, CLI (Console Port, Telnet, SSH), SNMP, RMON e Dual Image.
- Dispositivo integrato Omada SDN* - La nuova soluzione Omada Software Defined Networking consente di gestire le reti Omada con modalità Hybrid Cloud e Full-Cloud. Integra Access Point della serie EAP, Router VPN SafeStream e Switch JetStream by Omada.
- App Omada - L'intuitiva app Omada, per dispositivi Android e iOS, consente di accedere da remoto alla rete tramite Cloud, in qualunque momento, ovunque ti trovi.
| CARATTERISTICHE HARDWARE | |
|---|---|
| Interfaccia | • 24× 10/100/1000Mbps RJ45 Ports • 4× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Numero ventole | 2 |
| Alimentazione | 100-240 V AC~50/60 Hz |
| Porte PoE+ | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports, up to 30 W per port • Power Budget: 384 W |
| Dimensioni ( L x P x A ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Tipo di montaggio | Rack Mountable |
| Max Power Consumption | • 31.0 W (110 V/60 Hz) (no PD connected) • 463.8 W (110 V/60 Hz) (with 384 W PD connected) |
| Max Heat Dissipation | • 105.78 BTU/h (110 V/60 Hz) (no PD connected) • 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected) |
| PRESTAZIONI | |
|---|---|
| Capacità di switching | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| Tabella ARP | 8K |
| Jumbo frame | 9 KB |
| CARATTERISTICHE SOFTWARE | |
|---|---|
| QoS (Quality of Service) | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Funzionalità L2 e L2+ | • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback Detection - Port-based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| L2 Multicast | • Supports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MVR • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 12 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN |
| ACL (Access Control List) | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
| Sicurezza | • IP-MAC-Port Binding - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding - DHCPv6 Snooping - ND Detection - IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode • IP/Port/MAC based access control • 802.1X - Port based authentication - Mac based authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication and accountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| Caratteristiche L3 | • 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP • 316 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay • DHCP L2 Relay |
| Gestione | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| Caratteristiche avanzate | • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • ZTP (Zero-Touch Provisioning)* |
| ALTRO | |
|---|---|
| Certificazione | CE, FCC, RoHS |
| Contenuto della confezione | • TL-SG3428MP Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| Ambiente | • Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
OMA-SG3428MP
Sizes: 52.8x44x10
Box: 2
Color: Black
Certificate: CE RoHS FCC
Comp. brand: Omada
Box: 2
Color: Black
Certificate: CE RoHS FCC
Comp. brand: Omada
