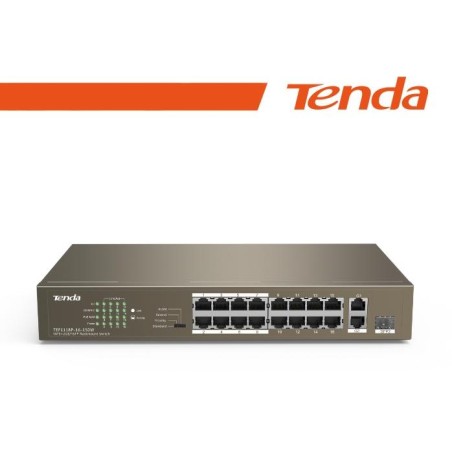

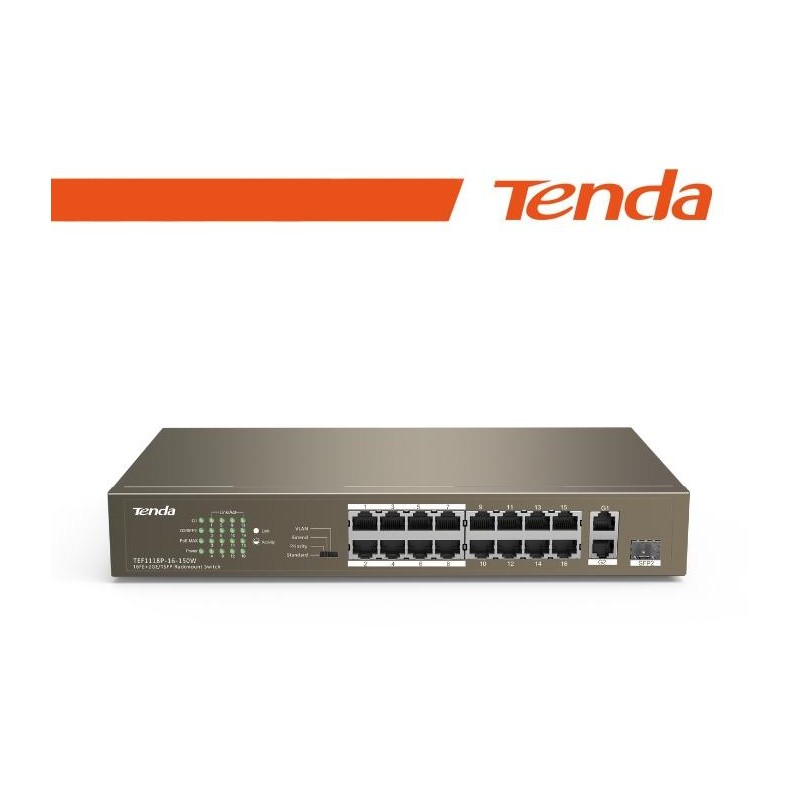

Tenda Switch 16-Ports PoE + 1 GE+1 SFP Unmanaged - TEF1118P-16-150W
128,19 €
Tasse incluse
Sizes: 0
Box: 5
Color: Gray
Certificate: CE RoHS FCC
Comp. brand: Tenda
Box: 5
Color: Gray
Certificate: CE RoHS FCC
Comp. brand: Tenda
TEF1118P-16-150W not only offers 16 10/100 Mbps Base-TX RJ45 ports, but also 1 10/100/1000 Mbps Base-T RJ45 ports and 1 1000 Mbps Base-X SFP port. Ports 1-16 comply with the IEEE 802.3af standard and 802.3at standard and each port can support a maximum PoE power output of 30 W. The switch offers a maximum PoE power output of 135 W and it can supply power when exchanging data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Extend to help reducing cabling costs of IP terminals.
Standard&Protocol
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af
MTBF
≥100,000hours
Indicator
16*Link/Act per device
1*G1 Link/Act per device
1*SFP Link/Act per device
1*PoE-MAX per device
1*Power per device
1*G1 Link/Act per device
1*SFP Link/Act per device
1*PoE-MAX per device
1*Power per device
Interface
16 10/100Base-TX ports(Data/Power)
1 10/100/1000Base-T port(Data)
1 1000Base-X SFP port
1 10/100/1000Base-T port(Data)
1 1000Base-X SFP port
Lightning Protection
6KV
Store & Forward
Yes
exchange capacity
7.2 Gbit/s
Packet Forwarding Rate
5.36Mpps
MAC Address Table
4K
PoE supply management
Port 1 to Port 16 support IEEE802.3at/af POE standard
PN pass-through
1 2 4 5 +，3 6 7 8 -
Input Power
AC：100-240V～ 50/60Hz
Dimension
294*178*44mm( W x D x H )
Power Consumption
in full configuration：<150W
PoE Max Power Supply：135W
PoE Max Power Supply：135W
Ports feature
CCTV： 1-8 ports support QoS，If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device，like the monitoring computer. This ensures smoother monitoring video playback.
Standard： The switch’s functions are similar with a common unmanaged switch’s and all the ports of the switch can communicate with each other.
VLAN： In this mode, 1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports. It can be used to isolate broadcast storms and DHCP broadcasts.
Extend： In this mode, the data rate of 1-8 port is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.
Standard： The switch’s functions are similar with a common unmanaged switch’s and all the ports of the switch can communicate with each other.
VLAN： In this mode, 1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports. It can be used to isolate broadcast storms and DHCP broadcasts.
Extend： In this mode, the data rate of 1-8 port is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
