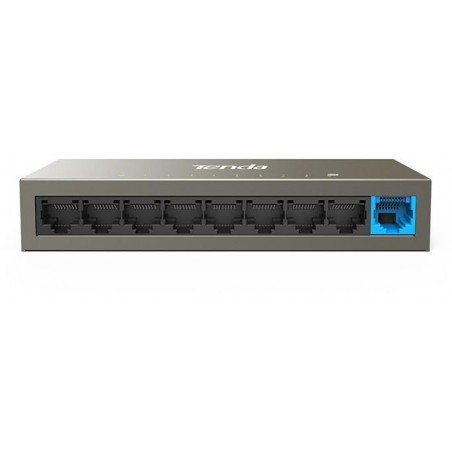

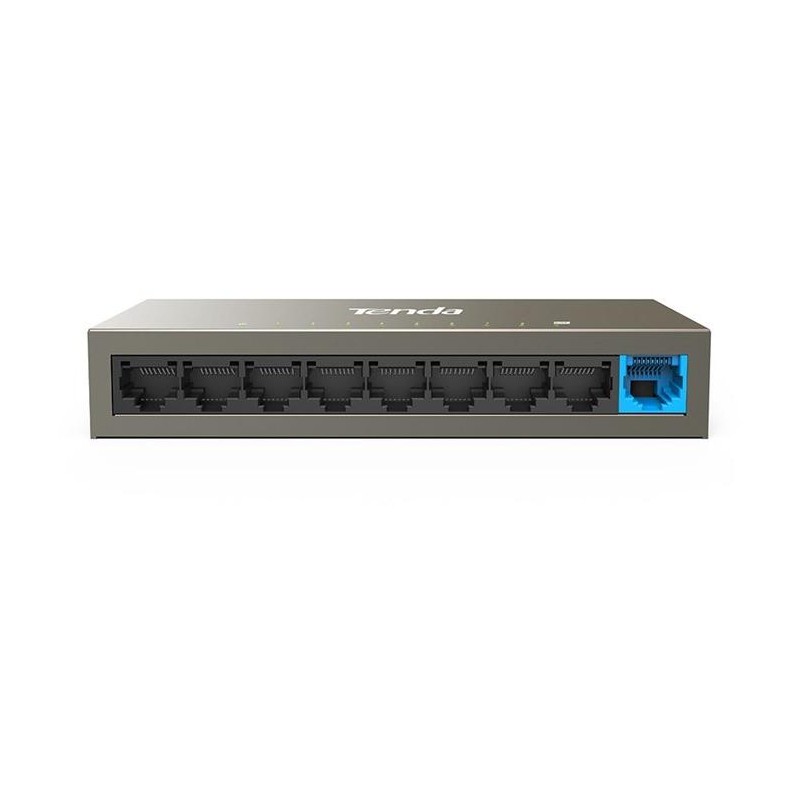

TEF1109DT is a 9-port fast Ethernet switch developed by Tenda, offering 9 10/100 Mbps RJ45 ports. Equipped with large packet buffer, it also ensures smooth streaming even when 8 HD IP cameras are working simultaneously. You can enable port VLAN mode of the switch to protect your LAN network from broadcast storm and prevent loss of monitoring images. In addition, the switch offers 6 kV lightning protection for its uplink port. In a word, TEF1109DT is a perfect choice for small and medium-sized IP surveillance projects and enterprises to have network.
Standard e Protocollo
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Porta
8 * 10/100 Mbps RJ45 port
1 * 10/100/1000 Mbps uplink port
Risorse sistema di trasmissione
Recommended: CAT5/5e UTP or better
Efficienza nella modalità di invio
10 Mbps: 14880 pps
100 Mbps: 148800 pps
1000 Mbps: 1488000 pps
Potenza
Input: 100 - 240 V AC, 50/60 Hz
Output: DC 9 - 12 V
Protezione dai fulmini
6 kV for uplink port
Dimensioni
140 mm * 66.5 mm * 25.3 mm(L * W * H)
LED
1 * Power
9 * Link/Act
Capacità di commutazione
3.6 Gbps
Tabella degli indirizzi MAC
2 K
Consumo massimo
Max: 5 W
Immagazzinamento ed invio
Supported
Protocol
CDMA/CD
Rilevamento indirizzi MAC
Auto learning & auto aging
VLAN
Supported. Port 9 is an uplink port and ports 1 to 8 are isolated from each other.
Temperatura
Operating temperature: (0 - 40)°C
Storage temperature: (-40 - 70)°C
Umidità
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certificazioni
CCC, CE, FCC, RoHS
Prodotti correlati
TEF1109D
9-Port 10/100M Ethernet Desktop Switch
Sistema operativo
Windows 8 32/64 bit
Windows 7 32/64 bit
Windows XP 32/64 bit
Linux, MAC OS
Contenuto della confezione
1 * 8FE+1GE Desktop Switch
1 * Power adapter
1 * Quick installation guide
