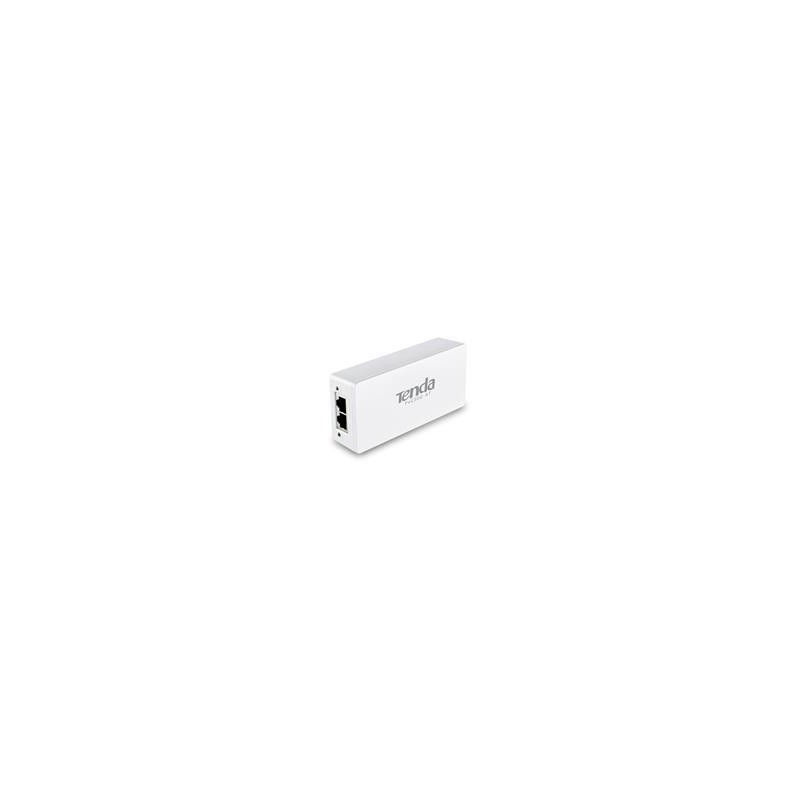

Gigabit Ethernet Power Injector, 30W, 802.3at, 802.3af, 48V
Box: 20
Color: White
Certificate: CE RoHS FCC
Comp. brand: Tenda
PoE30G-AT PoE Injector delivers up to 30W output power per port. By using this device, both data and electrical power can be simultaneously delivered through a single CAT5 (or better) Ethernet cable to a non-PoE Ethernet-enabled device, eliminating the trouble to connect it to an outlet nearby with an external power cord. You can connect it to a wireless AP, Web cam (IP Camera), IP telephone, or other devices for the purpose of reducing installation cost and improving your network performance.
PoE Feature:
â—�1�7 Support IEEE802.3afã€ï¿½IEEE802.3at standard
â—�1�7 Auto-detects and provide power supply to PD equipment which compliant with IEEE802.3afã€ï¿½at standard
â—�1�7 Power consumption one port up to 30W
Interface Features:
â—�1�7 Compliant with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3af,IEEE802.3at Ethernet standard
â—�1�7 2 RJ-45 Gigabit ports support 10/100/1000Mbps connecting rate
â—�1�7 Date&Power Out port support PoE
Product Features:
â—�1�7 Integrated design and easy installation
â—�1�7 Plug and play, no need to setup
â—�1�7 GE transmission rate for wide use
Fireproofing Features:
â—�1�7 Fireproofing level of case up to 94V0
Model No. | PoE30G-AT |
Description | PoE Injector |
Standard and protocol supported | Compatible with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af , IEEE802.3atStandard CSMA/CD, TCP/IP |
Features | Support the powered devices compatible with IEEE802.3afã€ï¿½IEEE802.3at Standard Transmission range up to 100M Power output can be matched automatically Plug and play |
Port | 1 GE port 1 data&power output port supporting PoE |
Indicators | PWR, PoE |
Dimension(W*D*H) | 131mm*60mm*33mm |
Power output | 30W |
Operating temperature | 0℃~40℃ |
Storage temperature | -40℃~70℃ |
Relative humidity(Operational) | 10%~90% (noncondensing) |
Relative humidity(Storage) | 5%~90% (noncondensing) |
certification | CE\FCC\ROHS |
