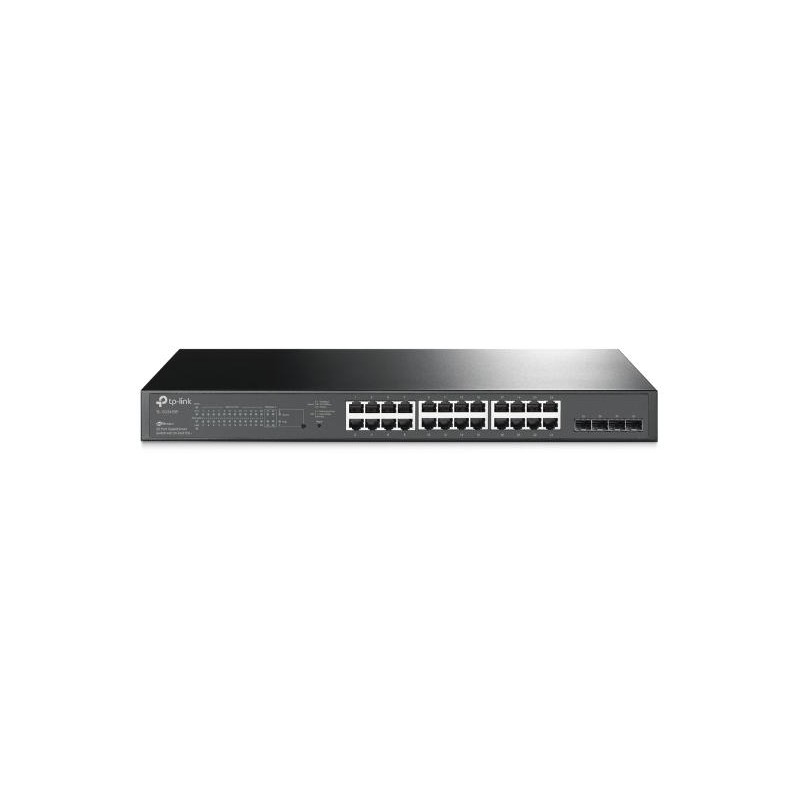

Switch Smart 28 porte Gigabit di cui 24 PoE+ 250W TL-SG2428P
search
  • Switch Smart 28 porte Gigabit di cui 24 PoE+ 250W TL-SG2428P

Switch Smart 28 porte Gigabit di cui 24 PoE+ 250W OMADA SDN

394,52 €
Tasse incluse
Sizes: 52,8x33,6x10
Box: 4
Color: Black
Certificate: CE RoHS FCC
Comp. brand: TP-Link
Quantità
Non disponibile

Switch Smart 28 Porte Gigabit di cui 24 PoE+ | Jetstream by Omada

  • Switch Gigabit PoE+ - Switch dotato di 28 porte Gigabit - 24 PoE+ e 4 SFP.
  • Power Budget totale - Alimentazione PoE+ 802.3at/af-compliant fino a 250 W su tutte le 24 porte PoE+.*
  • Dispositivo integrato Omada SDN - La nuova soluzione Omada Software Defined Networking consente di gestire le reti Omada con modalità Hybrid Cloud e Full-Cloud. Integra Access Point della serie EAP, Router VPN SafeStream e Switch JetStream by Omada.
  • App Omada - L'intuitiva app Omada, per dispositivi Android e iOS, consente di accedere da remoto alla rete tramite Cloud, in qualunque momento, ovunque ti trovi.
  • Routing Statico - Gestione efficace delle risorse di rete, ottimizzazione traffico dati interno.
  • Massima Sicurezza - IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, ecc.
  • Ottimizzazione video/voce - Con funzionalità L2/L3/L4 QoS e IGMP snooping.
  • Compatibile IPv6 - IPv6 con supporto dual IPv4/IPv6 stack, MLD snooping e IPv6 neighbor discovery.
  • CARATTERISTICHE HARDWARE
    Standard e protocolli IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
    Interfaccia • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    • 4× Gigabit SFP Slots
    Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
    • 1000BASE-X: MMF, SMF
    Numero ventole 2
    Porte PoE+ • Standard: 802.3at/af compliant
    • PoE+ Ports: 24 Ports
    • Power Supply: 250 W
    Dimensioni ( L x P x A ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
    Tipo di montaggio Rack Mountable
    Max Power Consumption • 32.1 W (110 V/ 60 Hz with no PD connected)
    • 308.6 W (110 V/ 60 Hz with 250 W PD connected)
    Max Heat Dissipation • 109.53 BTU/h (with no PD connected)
    • 1052.94 BTU/h (with 250 W PD connected)
    PRESTAZIONI
    Bandwidth/Backplane 56 Gbps
    Packet Forwarding Rate 41.7 Mpps
    Tabella ARP 8K
    Buffer (pacchetti) 4.1 Mbit
    Jumbo frame 9KB
    CARATTERISTICHE SOFTWARE
    QoS (Quality of Service) • 802.1p CoS/DSCP priority
    • 8 priority queues
    • Priority Schedule Mode
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    • Queue Weight Config
    • Bandwidth Control
    - Port/Flow based Rating Limit
    • Smoother Performance
    • Storm Control
    - Multiple Control Modes(kbps/ratio)
    - Broadcast/Multicast/Unknown-Unicast Control
    Funzionalità L2 e L2+ • 16 IP Interfaces
    - Support IPv4/IPv6 Interface
    • Static Routing
    - 32 IPv4/IPv6 Static Routes
    • DHCP Server
    • DHCP Relay
    - DHCP Interface Relay
    - DHCP VLAN Relay
    • DHCP L2 Relay
    • Static ARP
    • Proxy ARP
    • Gratuitous ARP
    • Link Aggregation
    - Static link aggregation
    - 802.3ad LACP
    - Up to 8 aggregation groups and up to 8 ports
    per group
    • Spanning Tree Protocol
    - 802.1D STP
    - 802.1w RSTP
    - 802.1s MSTP
    - STP Security: TC Protect, BPDU Filter/Protect,
    Root Protect
    • Loopback Detection
    • Flow Control
    - 802.3x Flow Control
    • Mirroring
    - Port Mirroring
    - CPU Mirroring
    - One-to-One
    - Many-to-One
    - Flow-Based
    - Ingress/Egress/Both
    • Device Link Detect Protocol (DLDP)
    • 802.1ab LLDP/ LLDP-MED
    VLAN • VLAN Group
    - Max. 4K VLAN Groups
    • 802.1Q tag VLAN
    • MAC VLAN
    • Protocol VLAN
    • GVRP
    • Voice VLAN
    ACL (Access Control List) • Support up to 230 entries
    • Time-Range
    - Time Slice
    - Week Time-Range
    - Absolute Time-Range
    - Holiday
    • Time-based ACL
    • MAC ACL
    - Source MAC
    - Destination MAC
    - VLAN ID
    - User Priority
    - Ether Type
    • IP ACL
    - Source IP
    - Destination IP
    - IP Protocol
    - TCP Flag
    - TCP/UDP Source Port
    - TCP/UDP Destination Port
    - DSCP/IP TOS
    • IPv6 ACL
    • Combined ACL
    • Rule Operation
    - Permit/Deny
    • Policy Action
    - Mirror
    - Rate Limit
    - Redirect
    - QoS Remark
    • ACL Rules Binding
    - Port Binding
    - VLAN Binding
    • Actions for flows
    - Mirror (to supported interface)
    - Redirect (to supported interface)
    - Rate Limit
    - QoS Remark
    Sicurezza • AAA
    • 802.1X
    - Port based authentication
    - MAC (Host) based authentication
    - Authentication Method includes PAP/EAP-MD5
    - MAB
    - Guest VLAN
    - Support Radius authentication and
    accountability
    • IP/IPv6-MAC Binding
    - 512 Binding Entries
    - DHCP Snooping
    - DHCPv6 Snooping
    - ARP Inspection
    - ND Detection
    • IP Source Guard
    - 253 Entries
    - Source IP+Source MAC
    • IPv6 Source Guard
    - 183 Entries
    - Source IPv6 Address+Source MAC
    • DoS Defend
    • Static/Dynamic/Permanent Port Security
    - Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control
    - kbps/ratio control mode
    • Port Isolation
    • Secure web management through HTTPS with
    SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI)
    management with SSHv1/SSHv2
    • IP/Port/MAC based access control
    IPv6 • IPv6 Static Routing and ACL
    • IPv6 Dual IPv4/IPv6
    • IPv6 Interface
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP)
    version 6
    • TCPv6/UDPv6
    • IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet(v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    GESTIONE
    Omada App Yes
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
    Management Features • Web-based GUI
    • Command Line Interface (CLI) through telnet
    • SNMPv1/v2c/v3
    • SNMP Trap/Inform
    • RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • SNTP
    • System Log
    ALTRO
    Certificazione CE, FCC, RoHS
    Contenuto della confezione TL-SG2428P
    • Power Cord
    • Installation Guide
    • Rackmount Kit
    • Rubber Feet
    Requisiti di sistema Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
    Ambiente • Operating Temperature: 0–50 ℃ (32–122 ℉);
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
TL-SG2428P
