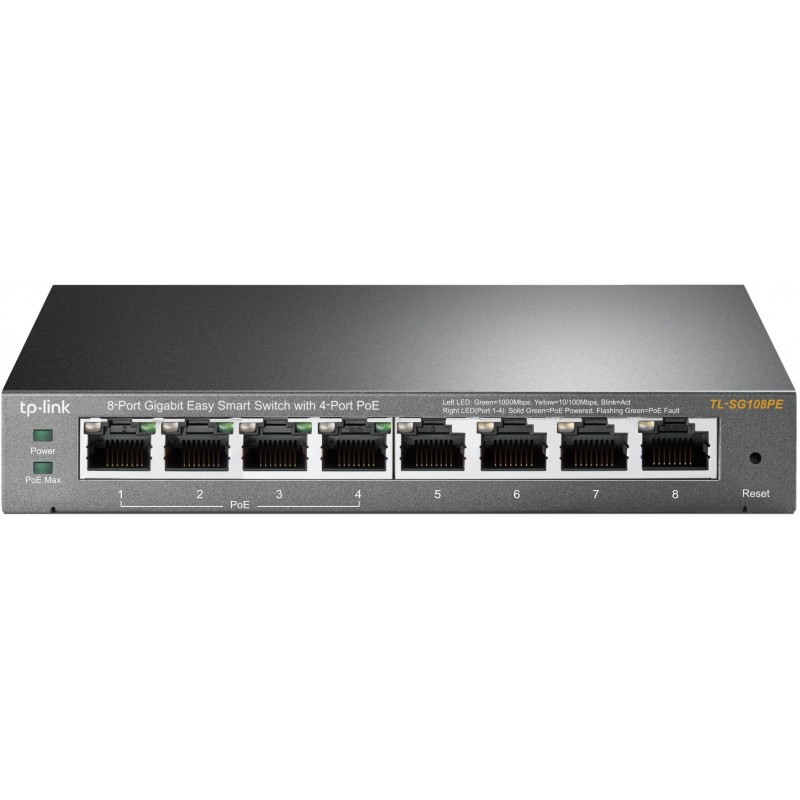

Easy Smart Switch 8 Porte Gigabit con 4 Porte PoE TL-SG108PE
search
  • Easy Smart Switch 8 Porte Gigabit con 4 Porte PoE TL-SG108PE

Easy Smart Switch 8 Porte Gigabit con 4 Porte PoE TL-SG108PE

70,43 €
Tasse incluse
Sizes: 6.2x4.0x1.0
Box: 16
Color: Black
Certificate: CE RoHS FCC
Comp. brand: TP-Link
Quantità

Easy Smart Switch 8 Porte Gigabit con 4 Porte PoE

  • 8 Porte Gigabit RJ-45
  • Tecnologia PoE per trasferimento di dati e alimentazione tramite lo stesso cavo
  • Supporta standard PoE 802.3af con potenza complessiva porte fino a 55W e fino a 15.4W per porta
  • Gestione semplificate di VLAN, Link Aggregation e Port Monitoring
  • Setup di rete semplice e intuitivo
  • Easy Management Utility per la gestione dello switch
  • CARATTERISTICHE HARDWARE
    Standard e protocolli IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
    IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
    Interfaccia 8 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX
    Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    Numero ventole Fanless
    Alimentazione External Power Adapter(Output: 48VDC / 1.25A)
    Consumo energetico Maximum (PoE on): 65.2W (220V/50Hz)
    Maximum (PoE off): 5.2W (220V/50Hz)
    Porte PoE+
    Porte PoE Standard: 802.3 af compliant
    PoE Ports: Port 1- Port 4
    PoE Power Budget: 55W
    Dimensioni ( L x P x A ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
    Max Power Consumption 5.15W (220V/50Hz with no PD connected)
    65.18W (220V/50Hz with 55W PD connected)
    Max Heat Dissipation 17.57 BTU/h (with no PD connected)
    222.39 BTU/h (with 55W PD connected)
    PRESTAZIONI
    Capacità di switching 16Gbps
    Packet Forwarding Rate 11.9Mpps
    Tabella ARP 4K
    Buffer (pacchetti) 1.5Mb
    Jumbo frame 15KB
    CARATTERISTICHE SOFTWARE
    QoS (Quality of Service) Support Port-Based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control
    Funzionalità L2 IGMP Snooping V1/V2/V3
    Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
    VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN
    Gestione Web-based GUI
    Easy Smart Configuration Utility
    Metodo di trasmissione Store-And-Forward
    ALTRO
    Certificazione FCC, CE, RoHS
    Contenuto della confezione TL-SG108PE
    Power Adapter
    Installation Guide
    Resource CD
    Rubber Feet
    Requisiti di sistema Microsoft® Windows® for running Utility
    Ambiente Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90%RH non-condensing
    Storage Humidity: 5%~95%RH non-condensing





TL-SG108PE
