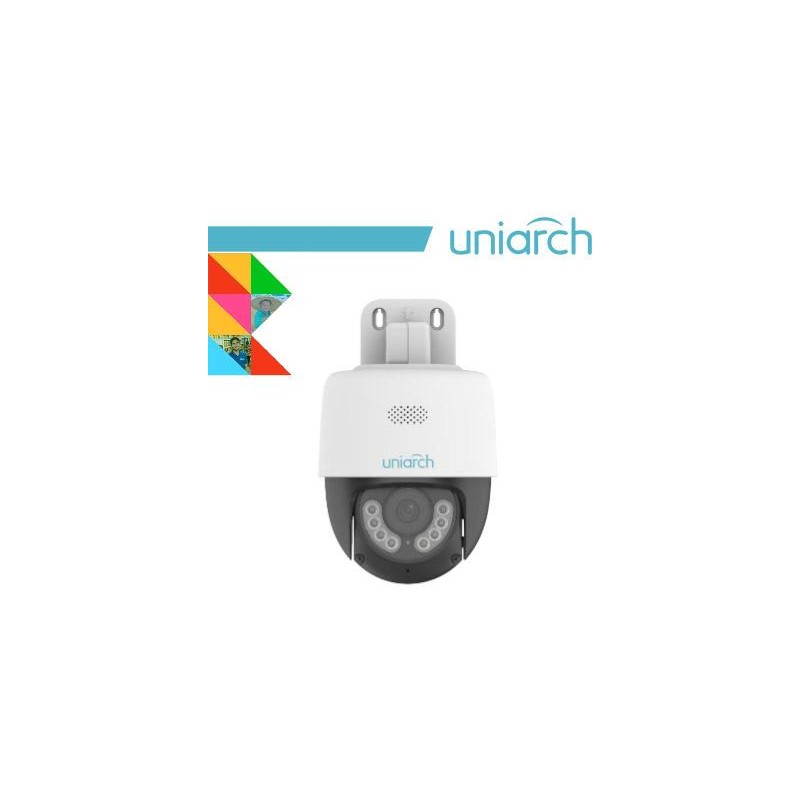

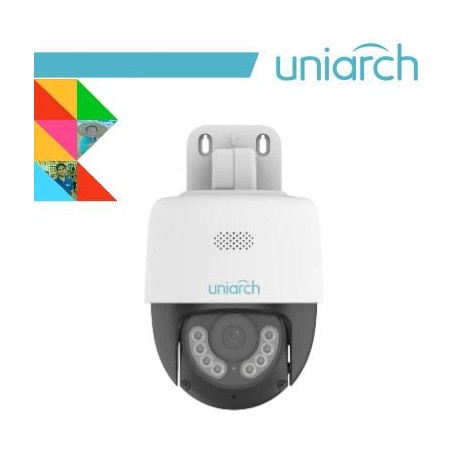

3MP DOME PAN TILT , Ottica Fissa, Pan Tilt 360, Ultra265 / H.265  Protezione IP67
|
|
DUAL LIGHT : CAMERA EQUIPAGGIATA CON INFRAROSSO + LUCE BIANCA
|
| |
|
JUNCTION COMPATIBILI
TR-JB05-A-IN
DATASHEET
|
| IPC-P213-AF40KC |
| Camera |
| Sensor |
1/2.8" progressive scan, 3.0 megapixel, CMOS |
| Min. Illumination |
Colour:0.005 lux (F1.6,AGC ON)
0 lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, shutter time: 1 s ~ 1/100000 s |
| WDR |
Digital |
| S/N |
>52dB |
| Lens |
| Lens type |
4mm |
| Iris |
Fixed; F1.6 |
| Field of View (H) |
90.5° |
| Field of View (V) |
44.4° |
| Field of View (D) |
111.3° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 4mm |
73.5 (241.0ft) |
29.4 (96.4ft) |
14.7 (48.2ft) |
7.3 (24.1ft) |
| Illuminator |
| IR Range |
Up to 30m (98ft) |
| Warm Light Range |
Up to 30m (98ft) |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264 |
| Frame Rate |
Main Stream: 3MP (2304*1296), Max 20fps;
Sub Stream: D1 (720*576), Max 20fps; |
| Video Bit Rate |
128 Kbps~6 Mbps |
| ROI |
Support |
| Video Stream |
Dual streams |
| OSD |
Up to 2 OSDs |
| Privacy Mask |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Intelligent |
| Smart Intrusion Prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection |
| Events |
| Basic Detection |
Motion detection, Audio detection |
| General Function |
Access Policy, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711U,G.711A |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR |
| Network |
| Protocols |
IPv4, TCP, UDP, DHCP , RTSP, DNS, DDNS, NTP, HTTP, HTTPS, 802.1x , SSL |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Web Browser |
Plug-in required live view: IE 8-11 |
| Pan & Tilt |
| Pan Range |
0° ~ 345° |
| Pan Speed |
1°/s ~ 40°/s |
| Preset speed: 40°/s |
| Tilt Range |
0° ~ 90° |
| Tilt Speed |
0.1°/s ~ 30°/s |
| Preset speed: 30°/s |
| Number of Presets |
256 |
| Home Position |
Support |
| Interface |
| Built-in Mic |
Support |
| Built-in Speaker |
Support |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| General |
| Power |
DC 12V±25%, PoE(IEEE 802.3af) |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
Φ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”) |
| Weight |
0.53kg(1.17lb) |
| Working Environment |
-30°C ~ 60°C (-22°F to 140°F), Humidity:≤95% RH(non-condensing) |
| Surge Protection |
4KV |
| Reset Button |
Support |
| Protection |
Ingression protection: IP66
Vandal resistant: N/A |
|
IPC-P213-AF40KC
